Pro-Tech Parking System

SES's involvement in the parking system is built upon 28 years of experience in access control for buildings. Our clients often seek an integrated vehicle access system that caters to paid parking, leading us to commercialize our own parking system under the brand Pro-Tech Parking.

With Pro-Tech Parking, parking operators and building owners can equip their parking spaces with control mechanisms to generate income based on their chosen business models. The system is modular, allowing clients to pick and choose components based on their specific requirements, making it suitable even for small spaces.

Pro-Tech Parking System Components

  • Central Control and Payment System
  • Ticket Dispenser
  • Autopay Station
  • Exit Station
  • Vehicle Barrier

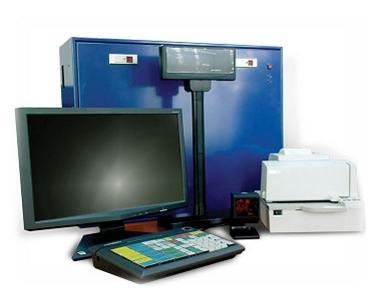

Central Control and Payment System (CCPS)

Consists of three main components: CP200, PS200, and CDE200. Optional hardware includes cash drawers, desktop laser barcode readers, desktop VFD fee displays, and ticket replacement issuer machines.

Features:

  • Device configuration
  • User setup
  • Setup and maintenance of ticketing rate packages
  • Public holiday and pre-schedule rate tariff configuration
  • Season card setup, maintenance, and collection
  • Comprehensive reporting (ticketing, collection, season, system audit, car flow analysis, etc.)

Ticket Dispenser

Designed for unattended ticket dispensing with various parking fee structures. The stainless steel front panel ensures protection against vandalism.

Features:

  • Fast ticket printing with heavy-duty printer
  • Dual-mode operation: online and standalone
  • Filtered air ventilation with dual fans
  • Supports smart card dispensing and multiple ticket types
  • Customizable logo and short messages

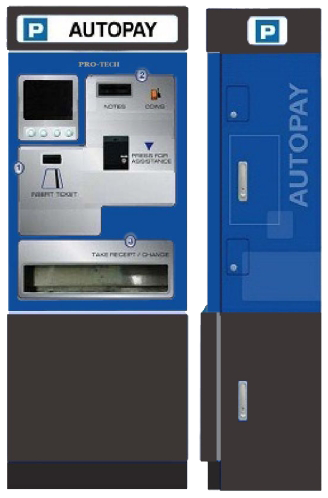

Autopay Station

Self-service kiosks allow patrons to pay parking fees with ease, reducing exit traffic and labor costs for parking operators.

Features:

  • Single Barcode Ticket System for entry, payment, and exit
  • Accepts RM1.00, RM5.00, RM10.00 banknotes with four-way insertion
  • Swappable cartridge design for cash handling convenience
  • Optional modules for secured cash management, multimedia payment guidance, and season collection

Exit Station

Fully automated station for unattended parking terminals, supporting various solutions such as thermal ticketing, contactless cards, and payment cards.

Features:

  • Motorized two-way insertion barcode ticket acceptor
  • Dual-mode operation: online and standalone
  • Filtered air ventilation with dual fans
  • Customizable features for future upgrades

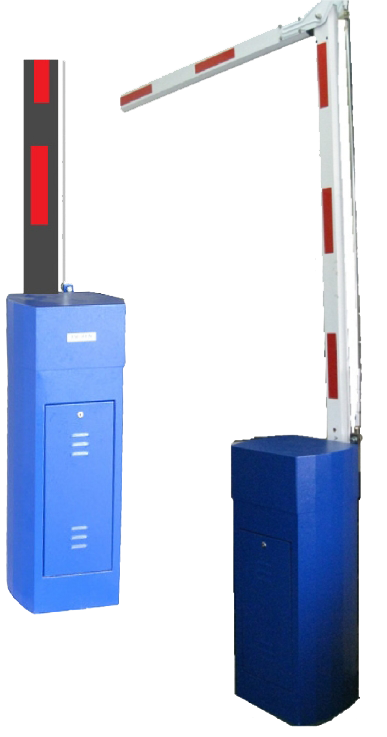

Vehicle Barrier

Designed to secure vehicle entry and exit with weatherproof and durable features for all weather conditions.

Features:

  • 5mm zinc-plated sheet steel housing for corrosion protection
  • Maintenance-free synthetic-based oil lubricant components
  • Powered by world-class motor and gearbox (100% duty cycle)
  • Support for various barrier arm types with reflective tapes
  • Easy integration with existing barrier gate systems
