SECURITY ACCESS CONTROLLER

SES has been providing access control systems for over 28 years, with more than 1,000 SES access controllers installed and operational across Malaysia. Our legacy controllers, including the SAC2000, PSC2000, and SAC5000, have paved the way for our latest models, the SAC7000 and SAC8000. Both controllers are designed to meet modern needs as IP-based solutions.

Next-Generation Access Control: SAC7000 & SAC8000

With advancements in network technology, we developed the SAC7000 and SAC8000 to leverage the benefits of IP technology. These controllers not only deliver the features and advantages of modern IP-based systems but also offer additional functionalities that maximize our clients' investment.

Both controllers are compatible with Legic and Mifare reader standards and support integration with a variety of access systems, such as:

  • Multiple types of doors
  • Auto pedestrian barriers and turnstiles
  • Roller shutters
  • Swing gates
  • Bunker doors
  • Vehicle and lift access (using a combination of SAC8000 and UMC)

Key Features of Our Access Controllers

  • Multiple Reader Interface: Compatible with a wide range of reader technologies.
  • High Number of Cardholders: Designed to manage large-scale installations efficiently.
  • Blacklist ID Storage: Capable of storing a vast number of blacklist IDs for enhanced security.
  • Offline Transactions: High capacity for offline transactions ensures continued functionality even during network interruptions.
  • Configurable Multimode Operation: Flexible configuration options to meet diverse access control needs.
  • Anti-Passback Feature: Prevents unauthorized sharing of access credentials.

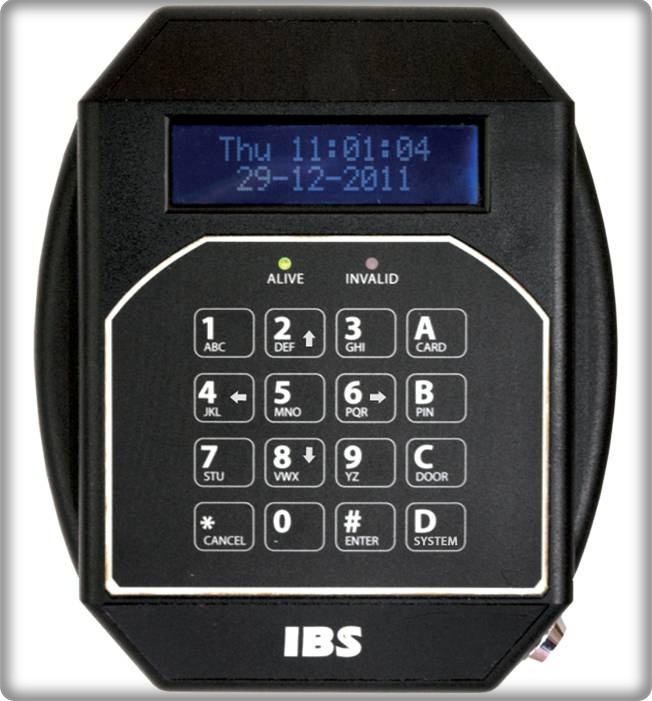

  • User-Friendly Keypad Interface: Simplified interface for easy operation and management.

SES access controllers are designed to provide robust security, flexibility, and scalability, making them the perfect solution for modern organizations seeking reliable access control systems.

SAC7000 vs SAC8000 Access Controller Specifications

ITEM DESCRIPTION
Controller Model SAC7000 SAC8000
Microprocessor 32-bit SoC Rabbit4000
Operating Frequency 58.98MHz 300MHz
Memory - 1MB Serial FLASH
- 512KB Fast SRAM Program Execution 		- 1GB Disk on Module
RAM - 512KB SRAM
- 2GB microSD/SD Card 		- 128/256MB DDR2 Onboard
Power Input • 12VDC Operating Voltage
• POE optional (for TAS)		 • Single Voltage +5V @ 380mA
Communication Port • 1 x 10/100 Based-T Ethernet
• 2 x RS232 up to 7 Mbps
• 1 x selectable RS232/RS485 (RS232 – up to 7 Mbps, RS485 – up to 7 Mbps) 		• 1 x 10/100 Based-T Ethernet
• 1 x Enhanced IDE Port
• 1 x Parallel Port
• 3 x RS232 Port
• 2 x USB port (Ver 2.0)
• 1 x Selectable RS232/485
• 2 x 16-bit GPIO Port
Communication Cable Type Recommended BELDEN 24AWG 1419A/UTP Cat 5e
Max Length of Communication 1Km (RS485) / 100m (UTP Cat 5e)
Controller I/O • 1 Door sensor, 1 Exit button
• 4 Tamper switch
• 1 Locking output (EMLock, Door Strike, etc.)
• 1 Alarm output (Siren/strobe light, etc.)
• 6 Protected open collector general-purpose output
• 7 Programmable digital inputs/outputs 		• Sensor loop 1
• Safety loop
• Barrier trigger
Card Format Support MIFARE, LEGIC, RFID, DESFIRE, iCLASS SE
Max Card Holder 30,000 40,000
Max Event Transactions (Offline Mode) 100,000 100,000
Max Blacklist ID Up to 20,000 Up to 20,000
Anti-Passback Global, Local & Forgive Anti-Passback
Operating Temperature -20°C to +85°C -40°C to +85°C
Humidity 10% to 90%, non-condensing
Remote & Poll Controller via Web Server • IP Address Configuration
• ID Configuration
• Time Synchronization
• Output Activation
• Reset Controller
• View Transaction or Card ID
• Poll the Controller Health Status
• Poll the Status of Controller I/O
